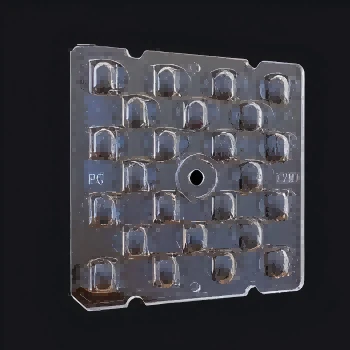

The 24 in 1 High-Efficiency Optical Lens is a highly efficient optical lens specially designed for street lighting. It adopts a 24-in-1 micro-lens array structure, which can precisely control the distribution of light and offer multiple light distribution modes to meet the various lighting requirements for roads. This 24 in one high-efficiency optical lens is suitable for Flat 3030/2835 LED packages.
High Light Transmittance
Standard efficiency: 94%
Using PC material ensures high light transmittance and weather resistance
Precise Optical Design
24 micro-lens units, arranged in a 4×6 matrix, optimized for uniform light spots
Offer 7 types of LDC (light distribution curves), suitable for different road widths and lighting requirements
Standardized Size
49.6×49.6mm square design, compatible with mainstream LED modules
Height range: 4.47mm - 5.21mm (optimized light distribution for different models)
A Wide Range Of Model Options
|
Model |
Height (mm) |
LDC Type |
Applicable Scenarios |
|
FT5050L24-3030T2/3 |
4.84 |
Type II |
Standard road |
|
FT5050L24-3030T2/5 |
4.47 |
Type II |
Wide illumination |
|
FT5050L24-3030T2S |
5.21 |
Type II |
Short and narrow streets |
|
FT5050L24-3030T2M |
4.56 |
Type II |
The middle distance from the main road |
|
FT5050L24-3030T2S2 |
5.05 |
Type II |
Optimize short distances |
|
FT5050L24-3030T3S1 |
4.65 |
Type II |
Special light distribution |
|
FT5050L24-3030T3M2 |
4.81 |
Type II |
Mid-range optimization |
Hot Tags: 24 in 1 high-efficiency optical lens for street lighting, China 24 in 1 high-efficiency optical lens for street lighting manufacturers, suppliers, factory, 6 in 1 High efficiency Optical Lens for Street Lighting, 16 in 1 High efficiency Optical Lens for Street Lighting, 24 in 1 High efficiency Optical Lens for Street Lighting, led optics, street lighting solutions, 4 in 1 High efficiency Optical Lens for Street Lighting
Technical Specifications
|
FT5050L24 (24 in 1) |
|||||
|
Model |
Distribution Curve |
Dimensions(mm) |
Height |
Efficiency |
LDC |
|
FT5050L24-3030T2/3 |
|
49.6*49.6 |
4.84 |
94 |
Type II |
|
FT5050L24-3030T2/5 |
|
49.6*49.6 |
4.47 |
94 |
Type II |
|
FT5050L24-3030T2S |
|
49.6*49.6 |
5.21 |
94 |
Type II short |
|
FT5050L24-3030T2M |
|
49.6*49.6 |
4.56 |
94 |
Type II medium |
|
FT5050L24-3030T2S2 |
|
49.6*49.6 |
5.05 |
94 |
Type II short |
|
FT5050L24-3030T3S1 |
|
49.6*49.6 |
4.65 |
94 |
Type III short |
|
FT5050L24-3030T3M2 |
|
49.6*49.6 |
4.81 |
94 |
Type III medium |
